U35 Microphone Wireless System
U35 Complete Dynamic System
- 5.8 GHz True Diversity wireless system for dynamic microphones
- Automatic scanning for the best signal out of the available 6 channels
- 24-bit / 48 kHz digital audio with low distortion and wide frequency response
- Stable 5.8 GHz wireless connection with a range of up to 100 feet (30.5 m)
- Mic Mode for dynamic microphones and Line Mode for wireless audio from a mixer to a powered speaker
Model Number: U35
U35 Microphone Wireless System
U35C Complete Condenser System
- 5.8 GHz True Diversity wireless system for condenser microphones
- Supplies 48V or 12V phantom power
- Automatic scanning for the best signal out of the available 6 channels
- 24-bit / 48 kHz digital audio with low distortion and wide frequency response
- Stable 5.8 GHz wireless connection with a range of up to 100 feet (30.5 m)
- Can also connect to active DI boxes
Model Number: U35C
U35 Microphone Wireless System
U35T Transmitter
- High-fidelity plug-and-play wireless transmitter for dynamic microphones, for use with a U35 Receiver
- 24-bit / 48 kHz digital audio with low distortion and wide frequency response
- Stable 5.8 GHz wireless connection with a range of up to 100 feet
Model Number: U35T
U35 Microphone Wireless System
U35R Receiver
- High-fidelity plug-and-play receiver for dynamic microphones, for use with a U35 Transmitter
- 24-bit / 48 kHz digital audio with low distortion and wide frequency response
- Stable 5.8 GHz wireless connection with a range of up to 100 feet
Model Number:

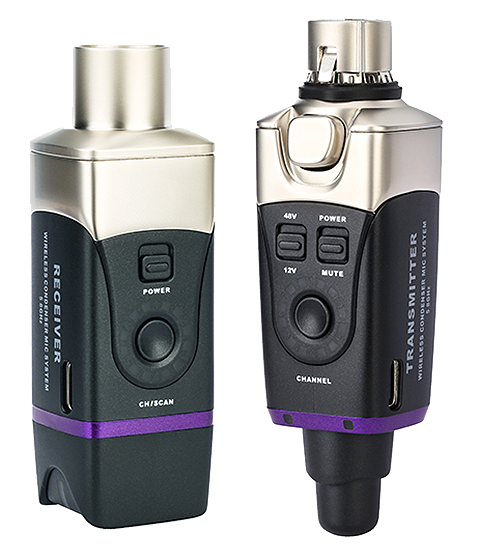

THE SYSTEM
The U35/U35C system is comprised of a Transmitter unit, which connects to your microphone; and a Receiver, which connects to a mixer, sound interface, preamp, XLR cable or snake.
YOUR TRUE VOICE
The U35 and U35C systems feature high-resolution, 24-bit / 48 kHz audio, with a very wide and smooth frequency response between 20 Hz and 20 kHz and a signal-to-noise ratio of 110 decibels. Sing or speak without compromising the quality of your voice or your microphone!
HOLD ON TO POWER
The internal battery in both the transmitter and the receiver lasts for 5 hours. Both units can be easily charged at the same time using the included dual-USB cable and any standard 5V USB charger—and charging takes between 1.5 and 2.5 hours depending on the current of the charger being used.
U35C charges in 2.5 hours and gives you between 3 and 6 hours of battery life, depending on the microphone’s phantom power current draw.
APPLICATIONS
The basic application is to run wirelessly from a microphone to a soundboard—live, at home or in the studio. But there’s a lot more you can do with the U35 and U35C systems!
FREE VOICE
The U35 system is not only great for singers and rappers. Wireless freedom is liberating for harmonica players, public speakers, DJs, preachers, auctioneers, actors, politicians… anyone who wants to move freely while speaking or performing to an audience!
BYPASS THE MIXER
If you need to address a crowd through powered speaker cabinets, not only do you not need a cable, you don’t need a mixer! Just connect your U35 receiver directly to the XLR input of the cabinet.
CONTROL YOUR RANGE
The U35 receiver can be connected to an XLR cable or snake, meaning that the transmitter’s signal doesn’t have to reach all the way to the soundboard or monitor desk—it can broadcast to the front of the stage, or any central and convenient location.
GET AMPED
Beyond all the vocal applications, the U35 system can also be used with microphones for guitar amplifiers, as well as direct audio signals from balanced XLR outputs, for example from multi-effect processors or keyboards.
PA FRIEND
Run wirelessly from a PA mixing console to a powered main speaker, avoiding the hassles and risks of running speaker cables across a crowded venue! You can also run wirelessly between powered mains or between powered monitors. For stereo and multiple mono PA and DJ systems, check out the U35D!
FREE INSTRUMENTS
Use the U35 to roam free with any instrument that requires a microphone or clip-on microphone, such as harmonicas, violins, trumpets, saxophones and accordions! For condenser microphones, use the U35C!
FREEDOM ON VIDEO
The U35 system can be used to connect microphones to DSLR cameras—provided you have an adapter to run between the XLR receiver and the camera’s (usually 3.5 mm) audio input. Remember to use the U35C when connecting condenser microphones.
Specifications
| U35/U35C | ||
|---|---|---|
WIRELESS TYPE |
5.8 GHz ISM worldwide open band | |
BIT DEPTH / SAMPLE RATE |
24-bit / 48 kHz | |
SWITCHABLE CHANNELS |
6 | |
SIMULTANEOUS CHANNELS |
6 | |
MODE |
U35: Input: Mic / Line | U35C: Phantom Power: 48V / 12V |
FREQUENCY RESPONSE |
20 Hz – 20 kHz (-3dB) | |
DYNAMIC RANGE |
110 dB (-3 dB) | |
MICROPHONE COMPATIBILITY |
U35: Dynamic and battery-powered condenser microphones | U35C: Condenser microphones and active DI boxes |
SIGNAL-TO-NOISE RATIO |
110 dB | |
TOTAL HARMONIC DISTORTION |
0.2% | |
LATENCY |
5 ms | |
OPERATING RANGE |
30.48 m / 100 ft (line-of-sight) | |
| Battery | |
|---|---|
TYPE |
Rechargeable Lithium-ion (internal) |
BATTERY LIFE |
5 hrs |
CHARGING TIME |
2.5 hrs (full charge) |
CHARGING VOLTAGE |
5V (USB) |
USABLE WHILE CHARGING |
Yes |
| Transmitter | |
|---|---|
MODEL |
U35T |
MODE |
Input: Mic / Line (-10 dB) |
CONNECTOR |
Balanced XLR (female) |
DIMENSIONS |
31 x 29 x 98 mm / 3.9" x 1.2" x 1.1" |
WEIGHT |
93 g / 3.3 oz |
MUTE |
Yes |
| Receiver | |
|---|---|
MODEL |
U35R |
CONNECTOR |
Balanced XLR (male) |
DIMENSIONS |
81 x 31 x 29 mm / 3.2" x 1.2" x 1.1" |
WEIGHT |
92 g / 3.2 oz |
WIRELESS TYPE |
5.8 GHz ISM worldwide open band |
BIT DEPTH / SAMPLE RATE |
24-bit / 48 kHz |
SWITCHABLE CHANNELS |
6 |
SIMULTANEOUS CHANNELS |
6 |
MODE |
U35: Input: Mic / Line |
FREQUENCY RESPONSE |
20 Hz – 20 kHz (-3dB) |
DYNAMIC RANGE |
110 dB (-3 dB) |
MICROPHONE COMPATIBILITY |
U35: Dynamic and battery-powered condenser microphones |
SIGNAL-TO-NOISE RATIO |
110 dB |
TOTAL HARMONIC DISTORTION |
0.2% |
LATENCY |
5 ms |
OPERATING RANGE |
30.48 m / 100 ft (line-of-sight) |
| Battery | |
|---|---|
TYPE |
Rechargeable Lithium-ion (internal) |
BATTERY LIFE |
5 hrs |
CHARGING TIME |
2.5 hrs (full charge) |
CHARGING VOLTAGE |
5V (USB) |
USABLE WHILE CHARGING |
Yes |
| Transmitter | |
|---|---|
MODEL |
U35T |
MODE |
Input: Mic / Line (-10 dB) |
CONNECTOR |
Balanced XLR (female) |
DIMENSIONS |
31 x 29 x 98 mm / 3.9" x 1.2" x 1.1" |
WEIGHT |
93 g / 3.3 oz |
MUTE |
Yes |
| Receiver | |
|---|---|
MODEL |
U35R |
CONNECTOR |
Balanced XLR (male) |
DIMENSIONS |
81 x 31 x 29 mm / 3.2" x 1.2" x 1.1" |
WEIGHT |
92 g / 3.2 oz |
