Connect P3S to your mixer or powered speaker via the XLR and Mini-XLR outputs, pair your Bluetooth device, and enjoy high-quality wireless stereo sound!

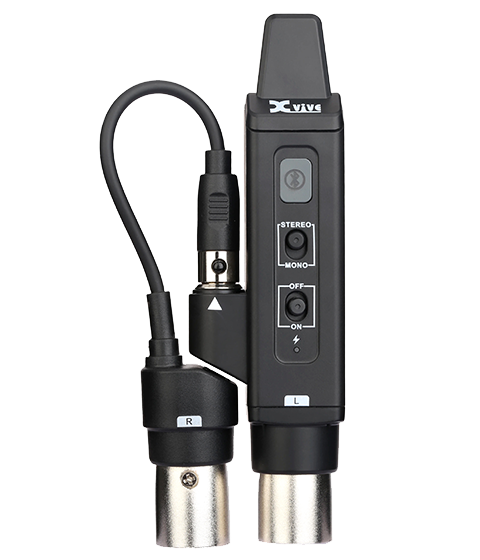

P3S Stereo Bluetooth Audio Receiver
- True stereo Bluetooth audio output, with independent L/R channels

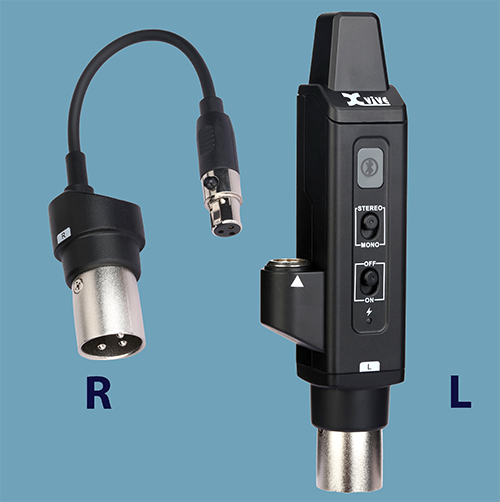

- Main/Left channel XLR output, Secondary/Right channel Mini-XLR output
- Mono/Stereo switch
- Bluetooth 5.0 with A2DP/AVRCP support and SBC, AAC, aptX, LDAC
- Transmission range: 100+ ft (line-of-sight)
- Built-in rechargeable lithium battery, >8 hours operation
- USB Type-C charging port (charging only)
- Balanced output level: +2 dBu
- DAC resolution: 16-bit / 48 kHz
- Bluetooth range: up to 100 feet (30.5 m)
Model Number: P3S
SIMPLICITY IN STEREO
Designed as a stereo output solution featuring a rugged XLR + mini-XLR design, P3S provides left and right balanced audio outputs from a single Bluetooth connection, allowing stereo playback without additional devices or complex setup.

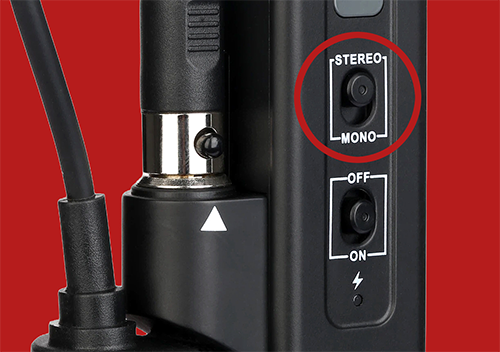

MONO AND STEREO MODES
P3S can operate in stereo or mono. In Mono, both outputs carry the same signal (L and R channels summed). In Stereo mode, you get true stereo playback from a single Bluetooth device, without requiring multiple receivers.

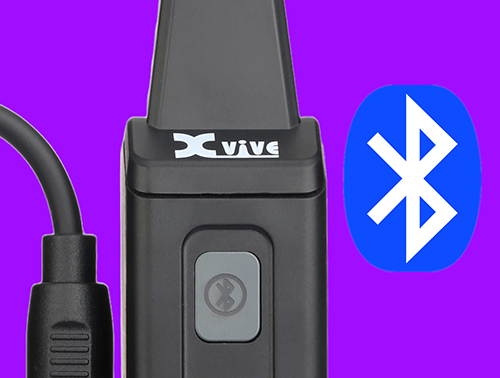

PAIRING PERFECTION
Pairing P3S is simple and easy. Power on the P3S, enable Bluetooth on your smartphone, tablet or computer and select “Xvive P3 Stereo” from the available Bluetooth devices list. When pairing is successful, a confirmation tone will sound and the Bluetooth LED will illuminate. To erase all stored Bluetooth pairing information, press and hold the PAIR button for 10 seconds.
HIGHLY APPLICABLE

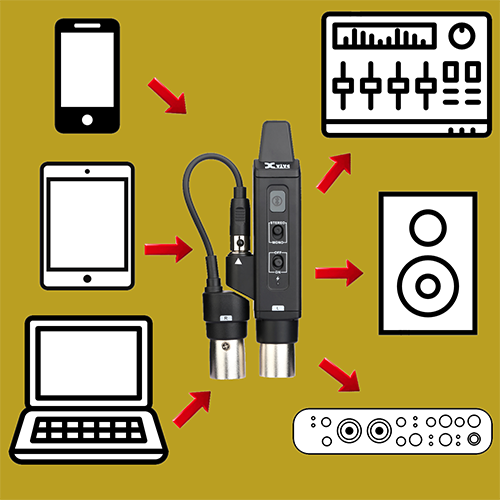

P3S allows you to broadcast stereo audio from a smartphone, tablet or computer, to a PA system/mixer, digital audio interface or recorder, or active loudspeaker. This gives you wireless control of music or other audio—whether you’re playing background music or other audio for events, fitness/dance instruction, or any other occasion.
Specifications
|
SUPPORTED CODECS |
SBC, AAC |
|
BLUETOOTH RANGE |
Up to 100 ft (30.5 m) line-of-sight |
|
OUTPUT CONNECTORS |
XLR male (L/Mono), Mini-XLR male (R/Mono) |
|
OUTPUT LEVEL |
+4 dBu |
|
FREQUENCY RESPONSE |
20 Hz – 20 kHz (±3 dB) |
|
BATTERY LIFE |
Up to 8 hours |
|
CHARGING TIME |
Approx. 2 hours |
|
BATTERY TYPE |
Internal rechargeable lithium-ion |
|
DIMENSIONS |
49 mm x 25 mm x 130 mm |
|
WEIGHT |
98 g |
